Small & medium CRX series Air dryer

Type

Standard

inlet type

High temp.

inlet type

Inlet air temp. range 10~50 10~80
Ambient temp(℃) 2~43 2~43
Inlet pressure(MPa) 0.29~0.98 0.29~0.98

Air Processing Capacity

(m³/min)

0.54~19 0.32~14.9

Heavy Duty CRX Series Air dryer

Type Air-cooled Water-cooled
Inlet air temp. range 10~60 10~60
Ambient temp 2~45 2~45
Inlet pressure(MPa) 0.29~0.98 0.29~0.98

Air Processing Capacity

(m³/min)


23~45
29~74

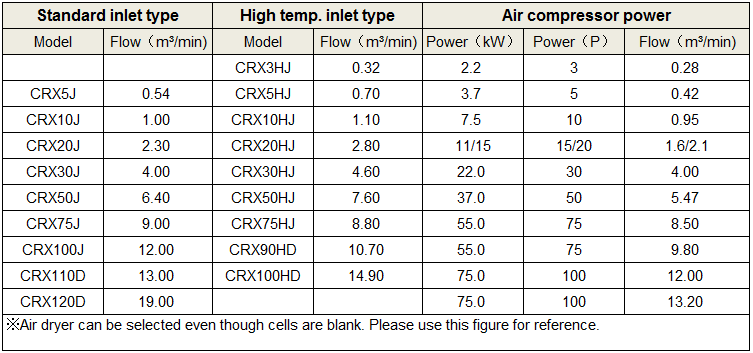

1.Selecting the suitable model from air compressor power (Refer Model Selection Comparison Table.)
2.Selecting the suitable model from the usage conditions (All CRX series)
Type selection (Option)
Ambient temperature (required)
°C
Please fill in the following conditions (required)
Pressure dew point: °C
Desired capacity: m³/min
Inlet air temperature: °C
Inlet air pressure: Mpa
