Specifications

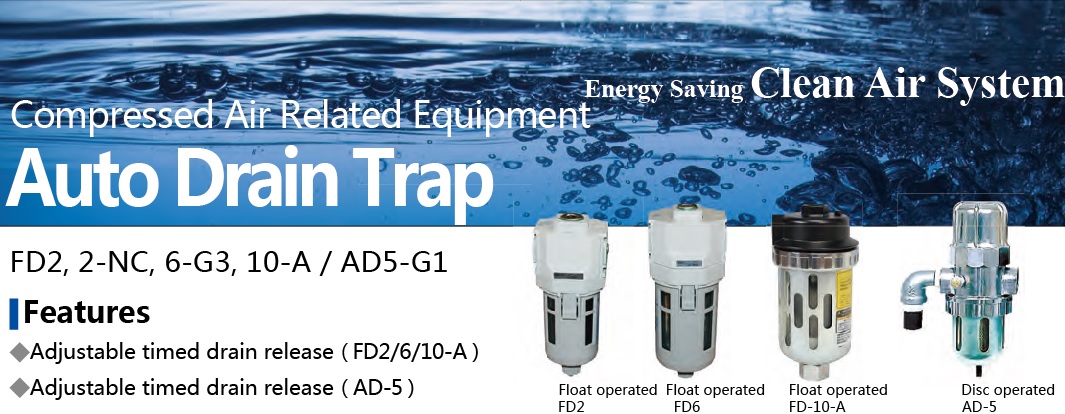

Model				Float operated			Disc operated
				FD2-G3	FD6-G3	FD-10-A	AD-5-G1
Performance	Maximum drain flow capacity※1	Drain (water only)	㎤ /回	10	30	80	450L/h
		Air only	L/ 回	—			about 0.3
Operable pressure range			MPa	0.1～1.0	0.1～1.0	0.20～0.98	0.29～0.98
Operable temperature range			℃	2〜 60
Processed fluid				Compressed air drain
Drain release method				Float operated			Disc operated
Connections	Inlet			Rc1/2
	Drain outlet			hose nipple ※2		Rc3/8	Rc1/2
Mass			kg	0.3	0.45	1.0	1.7
Outside dimensions			mm	□ 63× length 178	□ 80× length 201	φ96× length 193	φ86× length 198

※1.Drain conditions: Air pressure (gauge pressure): 0.69MPa。※2.Please use the hose nipple is φ5.7～φ6.0（OD φ8）。※Drain inlet (FD2，FD6，FD-10-A) ports are available on the top and side of the unit. Screw the included cap onto the unused connection port。※Please consult your Orion dealer for further details。
