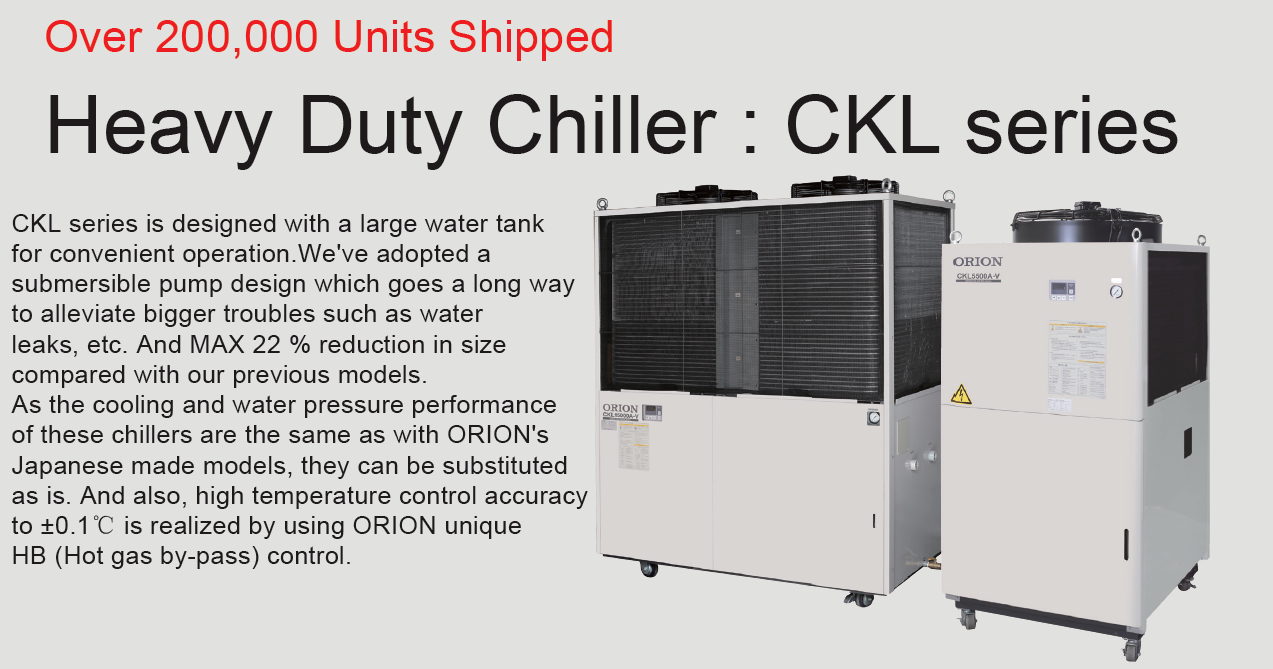

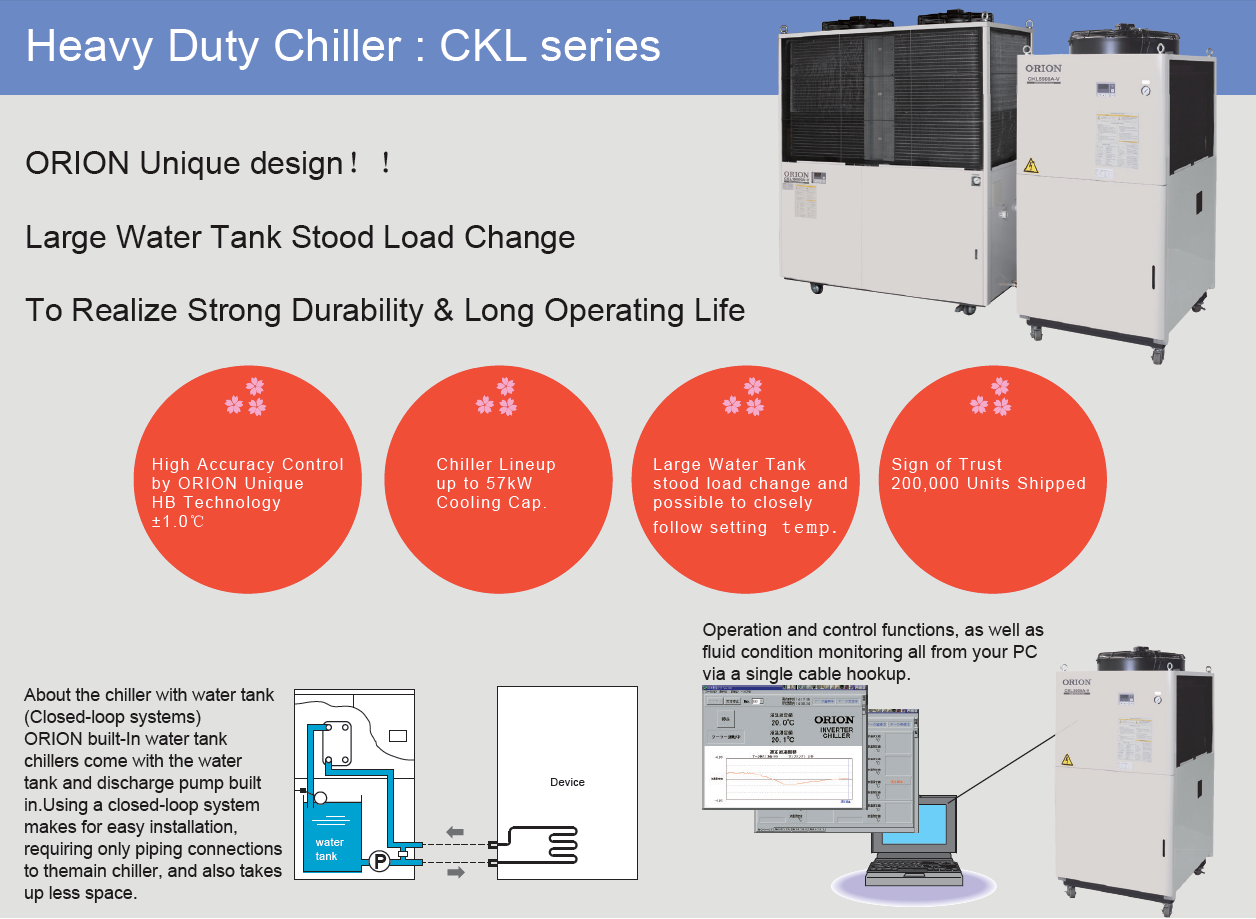

Product Features

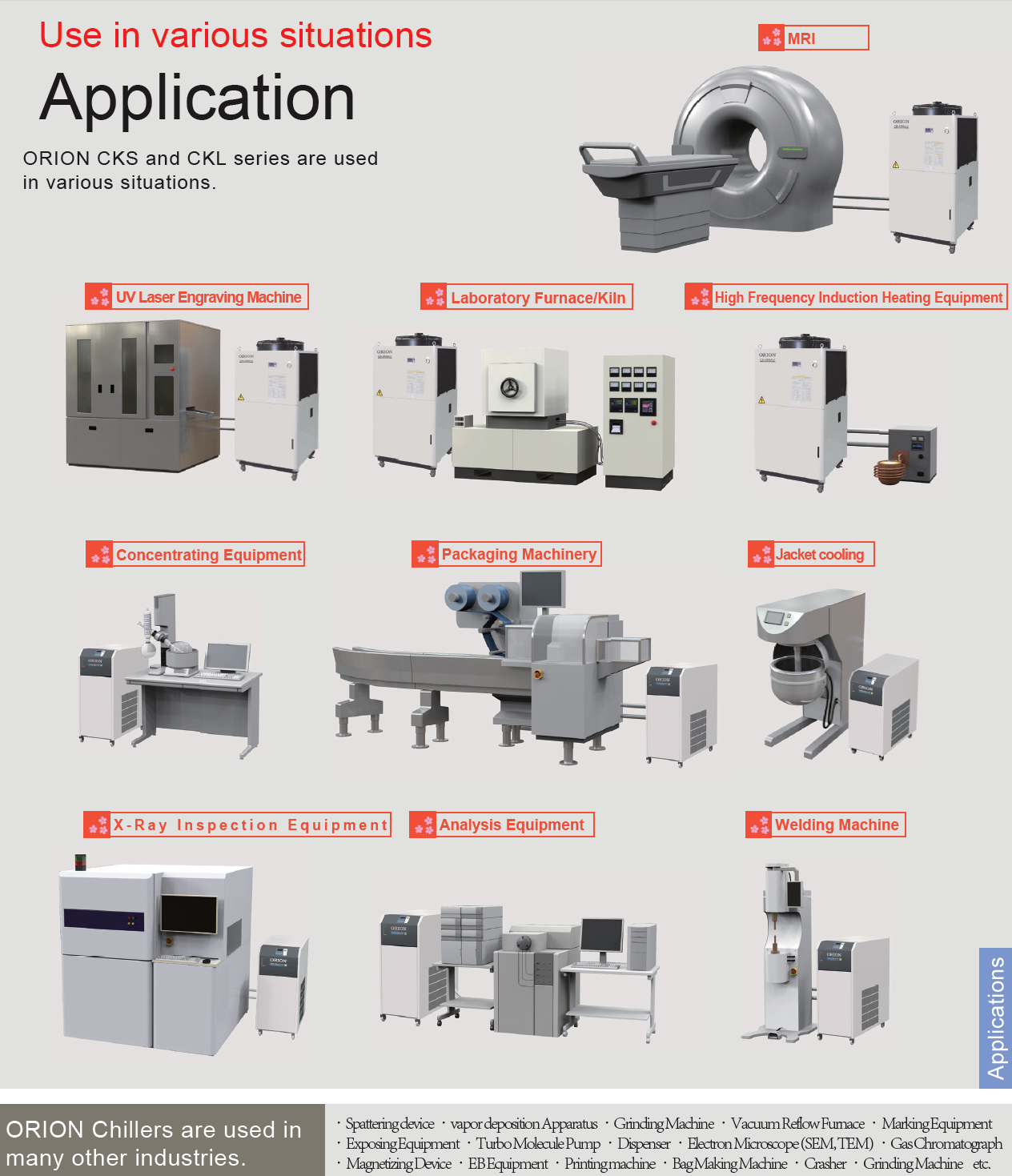

Use case
Catalog Download
Manual Download

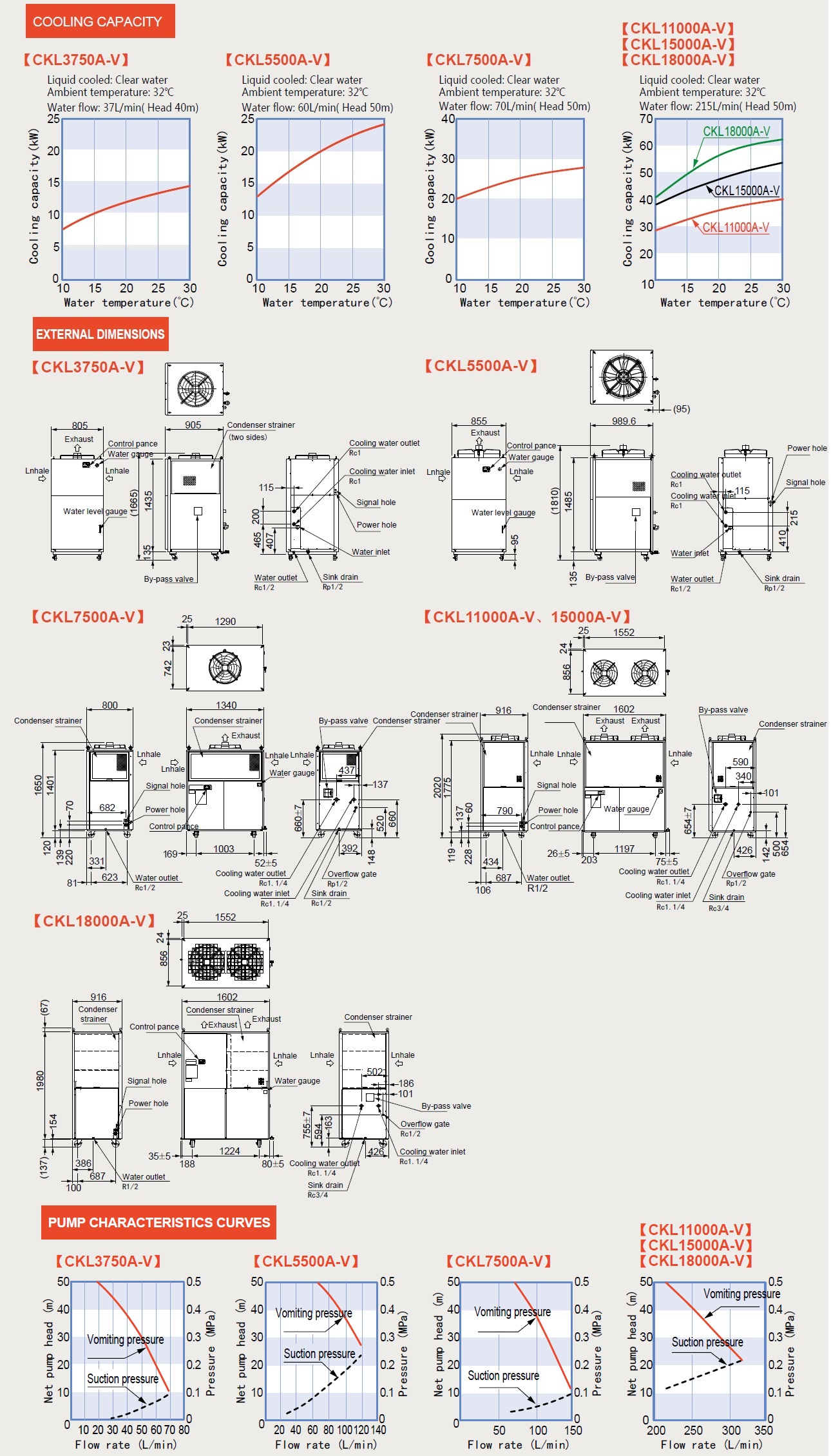

Specifications

Model				CKL 3750A-V	CKL 5500A-V	CKL 7500A-V
Performance	Cooling capacity ※1		kW	12	20	25
	Ambient temperature		℃	5～ 43
	Temperature control		℃	10 ～ 30
	Pressure range		MPa	0.1 ～ 0.5	0.28 ～ 0.5	0.1 ～ 0.5
	Control accuracy ※4		℃	±1.0℃ or Lower
	Flow rate		L/min	20 ～ 70	68 ～ 120	70 ～ 150
Power	Power source ※2		V	3ph 380±10％ 50Hz
	Power consumption※1		kW	5	8.5	11.3
	Electric current ※1		A	9.2	15	21.5
	Power capacity※3		kVA	8.2	13	18.1
	Breaker capacity		A	30		50
Operation control method				Compressor speed control
Equipment details	Compressor	Construction		Fully sealed turbo type
		Output	kW	3	6.5	9.16
	Condenser			Fin and tube forced air cooling
	Heat exchanger	Construction		Plate type heat exchanger
		Material		SUS 316（Brazing ：Cu）
	Discharge pump	Construction		Multistage centrifugal immersion type
		Output	kW	0.635	1.46
	Water tank capacity		L	Approx 95	Approx 115	Approx 140
	Refrigerant			R-407C	R-410A
Outside dimensions (H × D × W)			mm	905×805×1665	990×855×1810	800×1340×1650
Unit mass (dry weight)			kg	235	285	330

Model				CKL11000A-V	CKL15000A-V	CKL18000A-V
Performance	Cooling capacity ※1		kW	37.2	48	57
	Ambient temperature		℃	5～ 43
	Temperature control		℃	10 ～ 30
	Pressure range		MPa	0.22 ～ 0.5		0.1 ～ 0.5
	Control accuracy ※4		℃	±1.0℃ or Lower
	Flow rate		L/min	215 ～ 310		215 ～ 355
Power	Power source ※2		V	3ph 380±10％ 50Hz
	Power consumption※1		kW	14.1	19	22.6
	Electric current ※1		A	23.9	33.2	40
	Power capacity※3		kVA	20	27.1	33
	Breaker capacity		A	63		75
Operation control method				Compressor speed control
Equipment details	Compressor	Construction		Fully sealed rotary type (inverter driven)
		Output	kW	10.2	13.5	9.16×2
	Condenser			Fin and tube forced air cooling
	Heat exchanger	Construction		Plate type heat exchanger
		Material		SUS 316（Brazing ：Cu）
	Discharge pump	Construction		Multistage centrifugal immersion type
		Output	kW	2.66
	Water tank capacity		L	Approx 220
	Refrigerant			R-410A
Outside dimensions (H × D × W)			mm	916×1602×2020		916×1602×2117
Unit mass (dry weight)			kg	475	480	560

※ 1, Operating conditions: Chilled water temp.: 20 ℃ , Cooling water temp.: 32 ℃ (water cooled units only), Ambient temp.: 32 ℃ . Cooling capacity is at least 95% of listed figures. ※ 2, Source voltage phase unbalance should be less than ± 3%.※ 3,The figure noted is when the equipment is operating at the highest capacity of its normal operating range.※4,In case that the load is stable with 80% under rated conditions.
