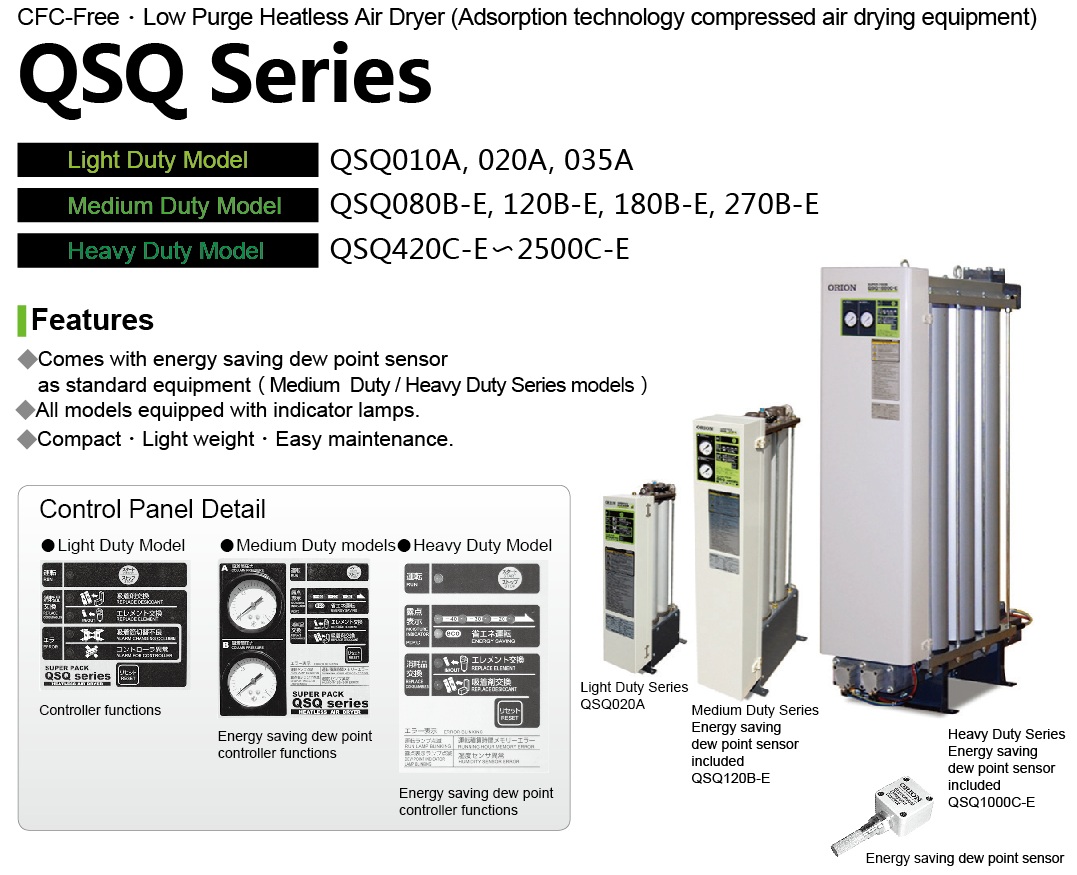

- Product Features

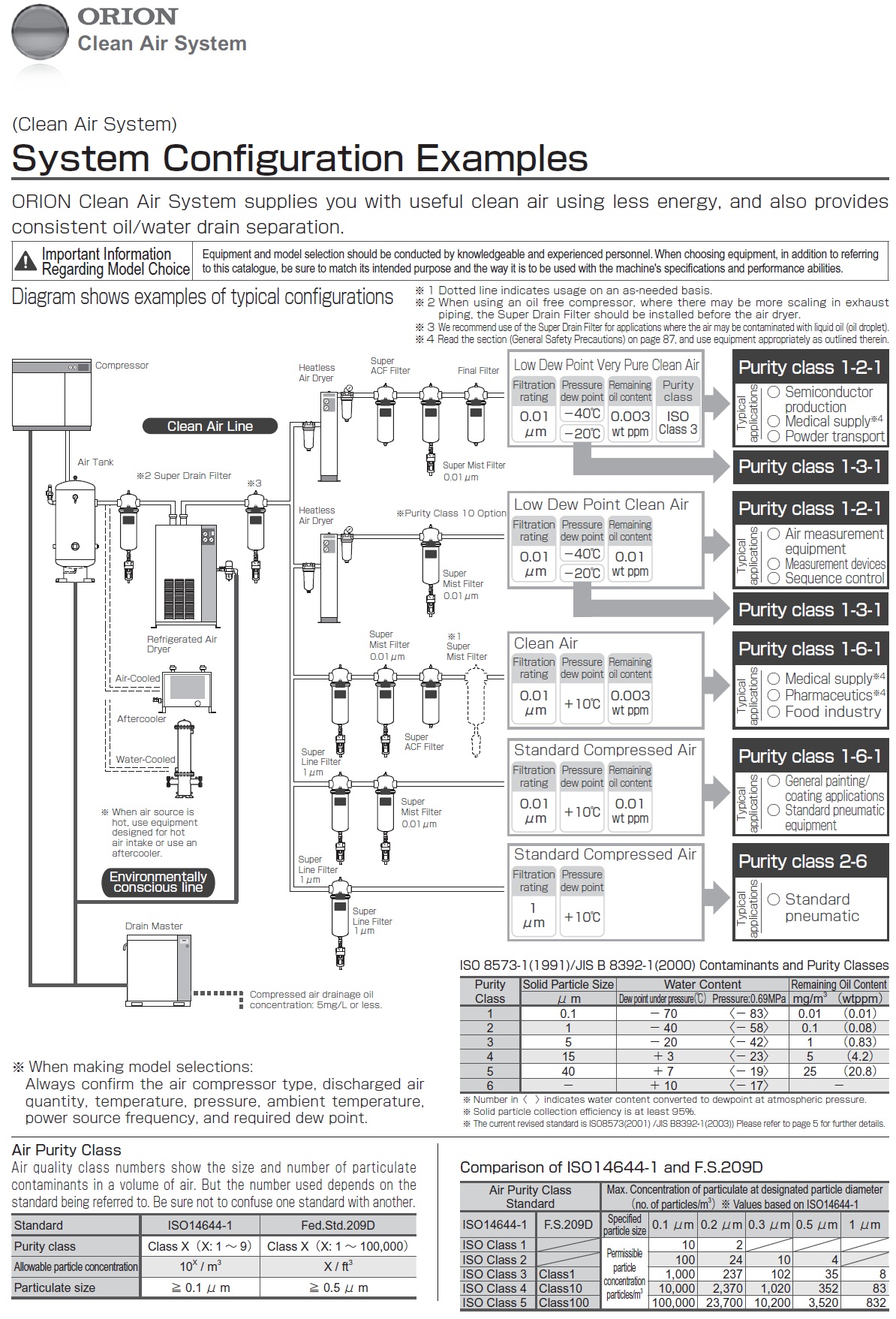

- System Configuration Examples
- Catalog Download
- Manual Download
-
Specifications
Model Small Series Medium Series 010A 020A 035A 080B-E 120B-E 180B-E 270B-E Pressure dew point ℃ at atmospheric pressure: -40℃ (PDP-20℃ ) Processing Capacity Inlet air capacity ㎥ /min 0.100 0.200 0.350 0.80 1.20 1.80 2.70 Outlet air capacity ㎥ /min 0.086 0.172 0.300 0.68 1.03 1.54 2.30 Purge air flow ㎥ /min 0.014 0.028 0.050 0.12 0.17 0.26 0.40 Operating ranges Allowable Medium Compressed air Max. air pressure MPa 0.39 〜 0.98 Ambient Temp ℃ 2〜 40 Inlet air condition ℃ /％ 5 ～ 50/Less than saturated humidity (no water droplets) Dimensions Depth mm 260 430 Width mm 113 163 Height mm 470 560 810 680 930 1130 1480 Mass kg 7.5 8.5 11 26.5 34 43 53 Air pipe connection Rc ⅜ Rc¾ Rc1 Purge air outlet — Rc½ Power Source (50/60Hz) 1ph 100/200/220/230 Accessory Filter Incoming MSF 75B 150B 200B 250B Outgoing LSF Model heavy Duty Series 420C-E 700C-E 1000C-E 1400C-E 2000C-E 2500C-E Pressure dew point ℃ at atmospheric pressure: -40℃ (PDP-20℃ ) Processing Capacity Inlet air capacity ㎥ /min 4.20 7.00 10.00 14.00 20.00 25.00 Outlet air capacity ㎥ /min 3.60 6.00 8.60 12.00 17.20 21.50 Purge air flow ㎥ /min 0.60 1.00 1.40 2.00 2.80 3.50 Operating ranges Allowable Medium Compressed air Max. air pressure MPa 0.39 〜 0.98 Ambient Temp ℃ 2〜 40 Inlet air condition ℃ /％ 5 ～ 50/Less than saturated humidity (no water droplets) Dimensions Depth mm 589 763 937 1111 1296 1470 Width mm 335 Height mm 1475 Mass kg 110 156 202 246 307 340 Air pipe connection Rc1½ Rc2 Rc2½ Purge air outlet Rc1 Power Source (50/60Hz) 1ph 100/200/220/230 Accessory Filter Incoming MSF 700-1-G2 1000-1-G2 2000-1-G2 2700C1-G2 Outgoing LSF 700-G2 1000-G2 2000-G2
※ Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure, 32℃, 75%.)
※ Processing conditions: Inlet air temperatureand humidity 35℃ less than saturated humidity (no water droplets),
※ For 24h continuous operation, a refrigerated dryer should be used just before this equipment or at an earlier stage. ※ For 24h continuous operation, a backup dryer should be made available.
※ Please contact ORION regarding custom built models of specifications outside the ranges listed above.
When the dryer is connected directly to the air compressor
※ If the inlet air pressure is more than 5℃ higher than the ambient temperature, be sure to install an after cooler (sold separately) or a refrigerated air dryer.
※ In case the compressor emits water mist, always install a Super Filter (for water droplet removal) (sold separately.)
※ Always use an air tank and install it before the dryer.
※ When installing a Super Filter (for water droplet removal) make piping as short as possible to help avoid further condensation. -
-
