Home > Products > Clean Air System
  • Specifications

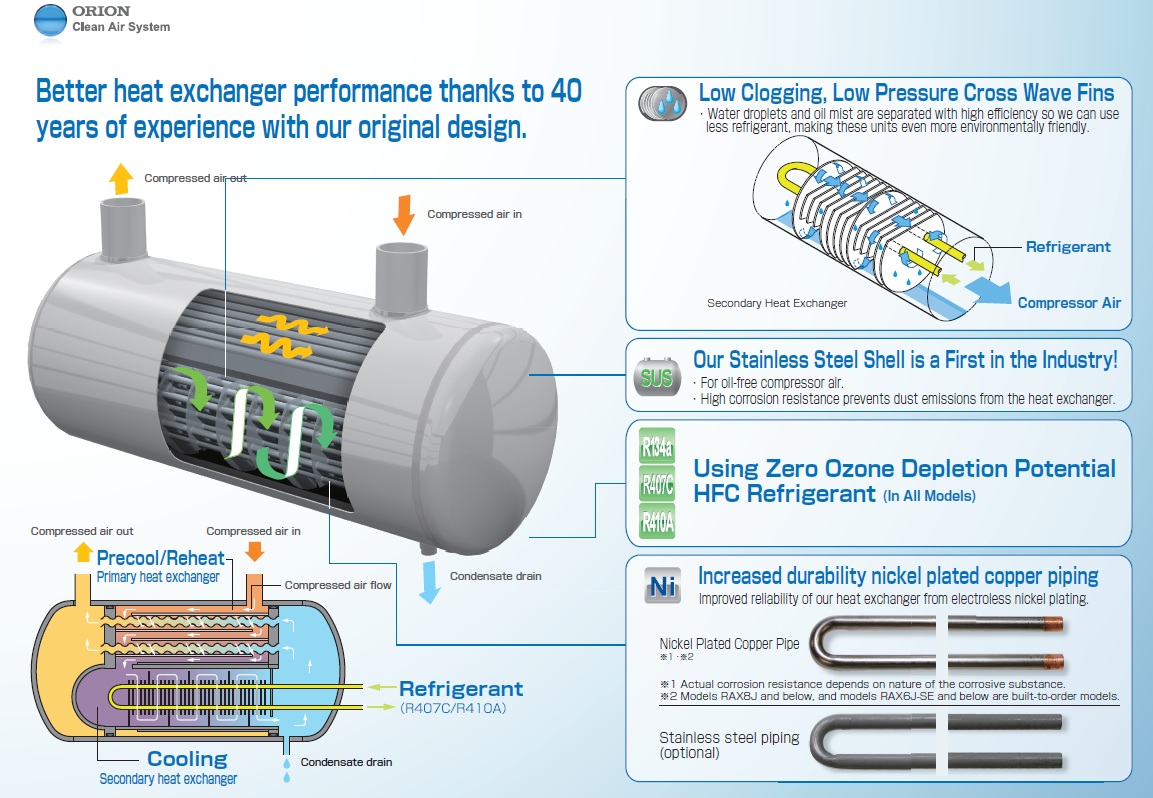

  • Product Features

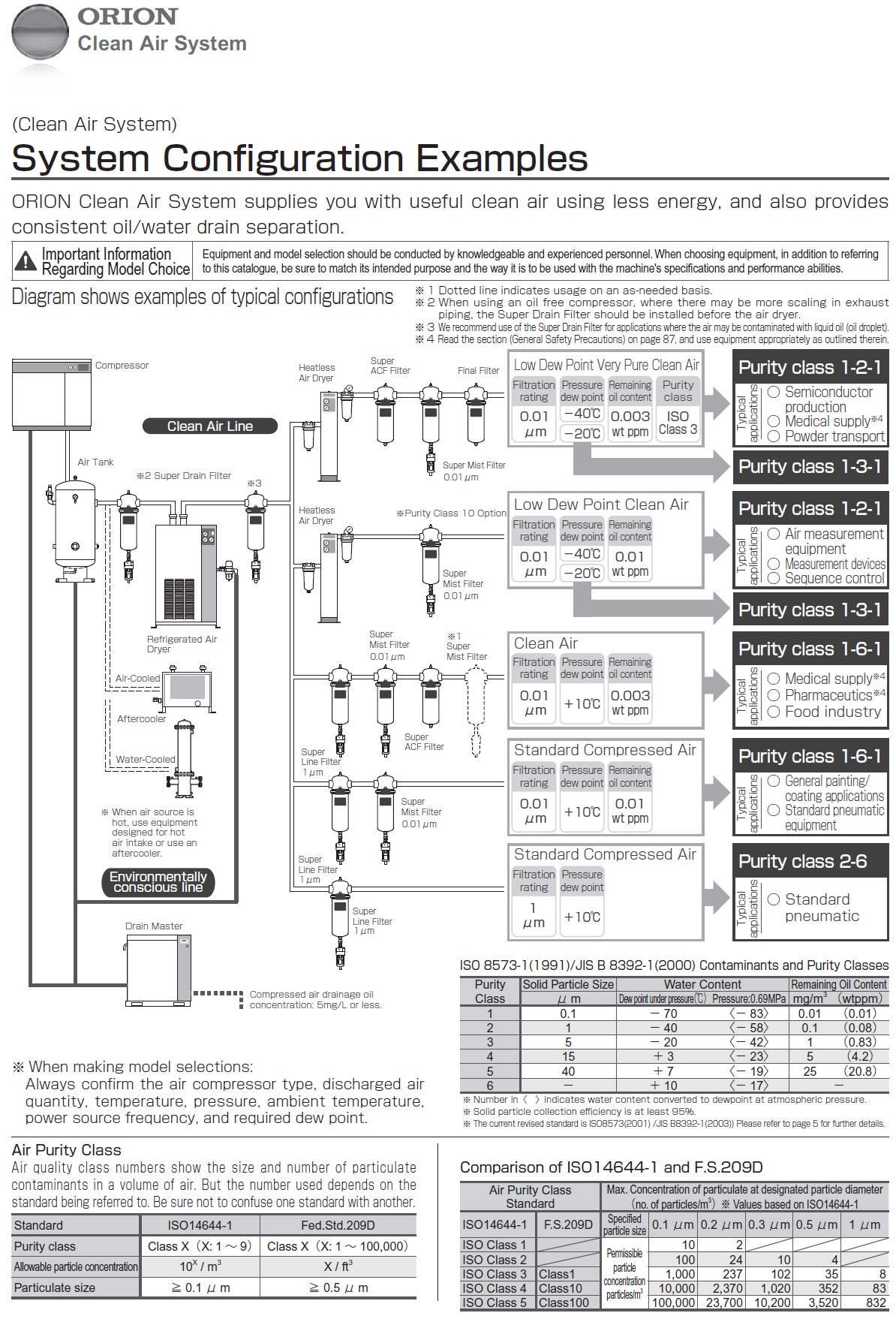

  • System Configuration Examples
  • Catalog Download
  • Manual Download

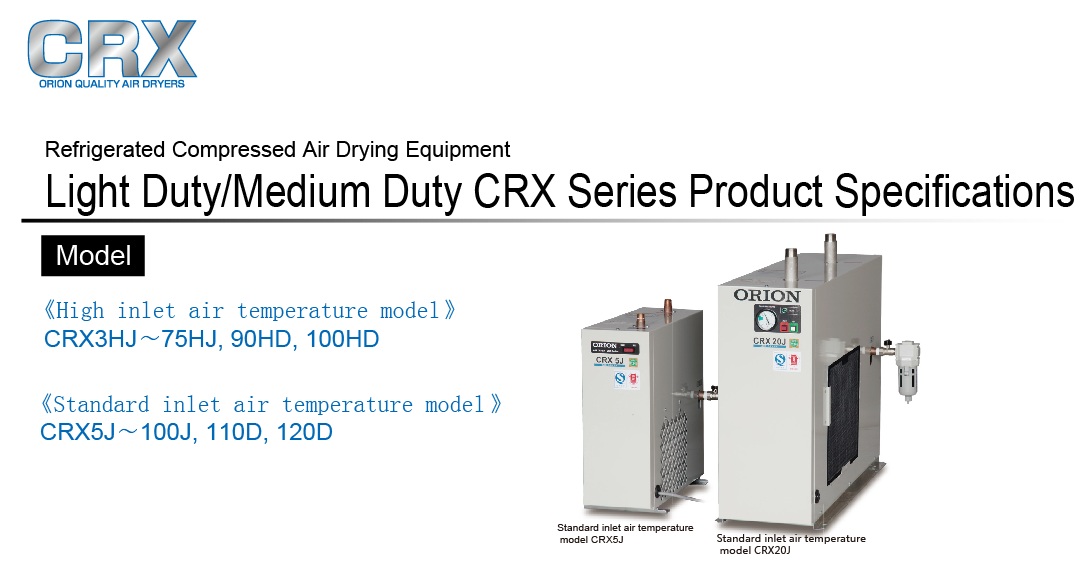

  • Model CRX3HJ CRX5HJ CRX10HJ CRX20HJ CRX30HJ
    Air Processing Capacity m3 /min 0.32 0.7 1.1 2.8 4.6
    Operating ranges Compressed air pressure MPa 0.2 ～ 0.98
    Inlet air temperature ℃ 10 ～ 80
    Ambient temperature ℃ 2 ～ 43
    Dimensions Height mm 450 600 820 820 960
    Width mm 180 240 240 240 300
    Dopth mm 480 510 610 610 900
    Mass kg 18 26 35 44 83
    Auto drain trap Model FD2（Float operated） FD6（Float operated）
    Drain outlet φ4（internal diameter φ5.7 〜 6.0（external diameter φ8）Use nylon-based tubes）
    Pipe Connections R1/2 R3/4 R1 R 1.1/2
    Refrigerant R134a R410A
    Electrical specifications Power Source V 1ph 220±10％  50Hz
    Power consumption kW 0.27 0.28 0.37 0.74 1.9

    Model CRX50HJ CRX75HJ CRX90HD CRX100HD
    Air Processing Capacity m3 /min 7.6 8.8 10.7 14.9
    Operating ranges Compressed air pressure MPa 0.2 ～ 0.98 0.29 ～ 0.98
    Inlet air temperature ℃ 10 ～ 80
    Ambient temperature ℃ 2 ～ 43
    Dimensions Height mm 980 1010 1029 1023
    Width mm 300 380 470 592
    Dopth mm 990 1050 1054 1229
    Mass kg 94 106 147 191
    Auto drain trap Model FD6（Float operated） AD5（Disc operated）
    Drain outlet φ4 Rc1/2
    Pipe Connections R 1.1/2 R2
    Refrigerant R410A R-407C
    Electrical specifications Power Source V 1ph 220±10％  50Hz 3 ph 380±5％ 50Hz
    Power consumption kW 2.0 2.0 3.0 4.4

    Model CRX5J CRX10J CRX20J CRX30J CRX50J
    Air Processing Capacity m3 /min 0.54 1.0 2.3 4.0 6.4
    Operating ranges Compressed air pressure MPa 0.2 〜 0.98
    Inlet air temperature ℃ 10 〜 50
    Ambient temperature ℃ 2〜 43
    Dimensions Height mm 450 600 820 820 960
    Width mm 180 240 240 240 300
    Dopth mm 480 510 610 610 900
    Mass kg 18 26 35 44 83
    Auto drain trap Model FD2（Float operated） FD6（Float operated）
    Drain outlet φ4（internal diameter φ5.7 〜 6.0（external diameter φ8）Use nylon-based tubes）
    Pipe Connections R1/2 R3/4 R1 R 1.1/2
    Refrigerant R134a R410A
    Electrical specifications Power Source V 1ph 220±10％  50Hz
    Power consumption kW 0.26 0.27 0.36 0.68 1.7

    Model CRX75J CRX100J CRX110D CRX120D
    Air Processing Capacity m3 /min 9.0 12.0 13.0 19.0
    Operating ranges Compressed air pressure MPa 0.2 ～ 0.98 0.29 〜 0.98
    Inlet air temperature ℃ 10 ～ 50
    Ambient temperature ℃ 2 ～ 43
    Dimensions Height mm 980 1010 1029 1023
    Width mm 300 380 470 592
    Dopth mm 990 1050 1054 1229
    Mass kg 94 106 147 191
    Auto drain trap Model FD6（Float operated） AD5（Disc operated）
    Drain outlet φ4 Rc1/2
    Pipe Connections R 1.1/2 R2
    Refrigerant R410A R407C
    Electrical specifications Power Source V 1ph 220±10％  50Hz 3 ph 380±5％ 50Hz
    Power consumption kW 1.7 1.7 2.6 4.2
    ※ Air processing conditions: 0.69MPa, inlet air temperature: 50℃ ,  pressure dew point: 10℃ , ambient temperature: 35℃ .※ Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure,32℃、75%.)
