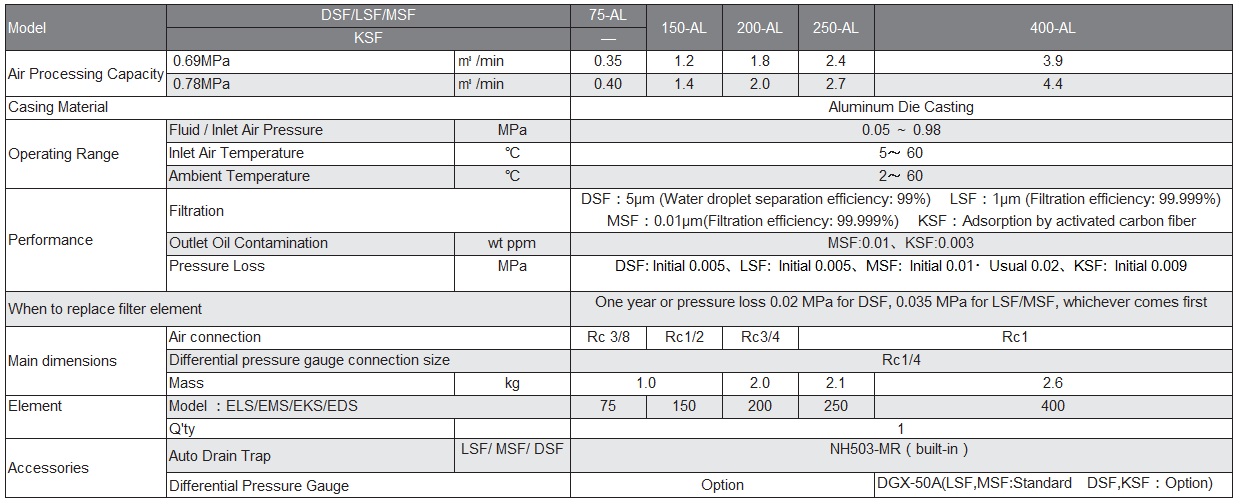

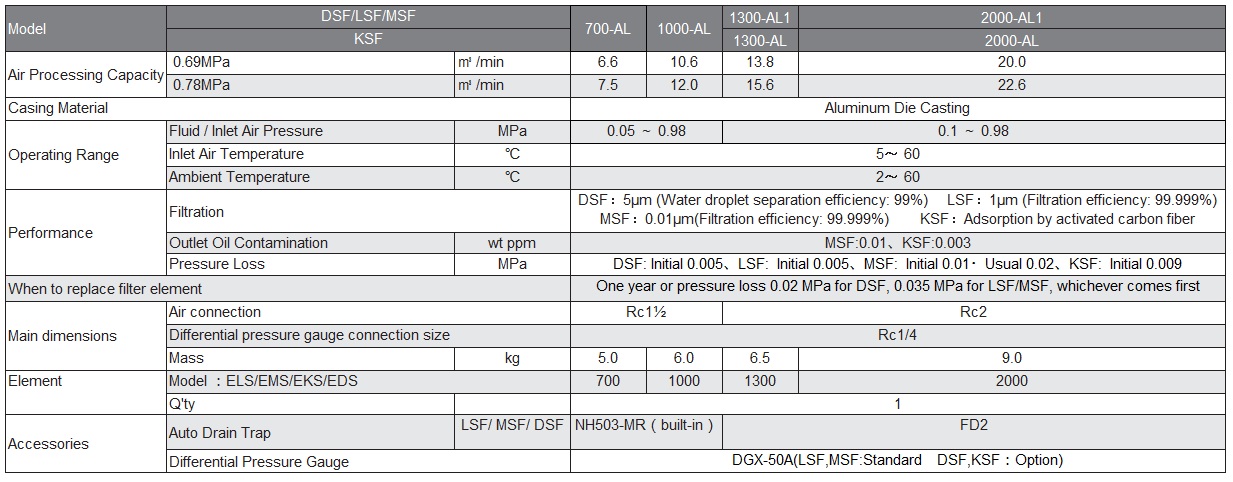

Specifications

※ 1.Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure, 32℃, 75% humidity.)※ 2.Processed air conditions: Inlet air pressure: 0.69MPa, inlet air temp:32℃, inlet dew point at atmospheric pressure: －17℃ (PDP: 10℃ ).※ 3.Replace filter when there is pressure loss or after the recommended period use, whichever comes first.※ 4. Auto drain trap: float operated type.

•
  01 CRX Clean Air System-EN.pdf
