Specifications

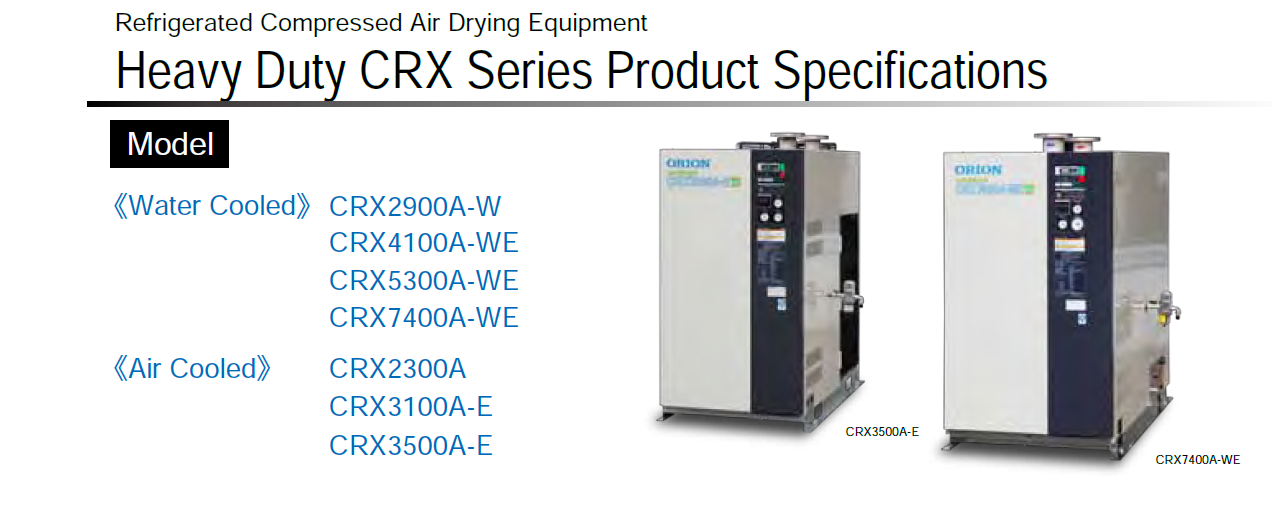

Model			Water cooled
			CRX2900A-W	CRX4100A-WE	CRX5300A-WE	CRX7400A-WE
Air Processing Conditions	Air Processing Capacity	㎥ /min	29	41	53	74
	Inlet air pressure	MPa	0.69
	Inlet air temperature	℃	45
	Outlet pressure dew point	℃	10
	Cooling water temperature	℃	32
	Cooling water flow rate	㎥ /h	4.8	5.2	5.4	9.0
	Ambient temperature	℃	—
Operating ranges	Inlet air temperature	℃	10 〜 60
	Ambient temperature	℃	2〜 45
	Compressed air pressure	MPa	0.29 〜 0.98
	Cooling water temperature	℃	2〜 34
	Cooling water pressure	MPa	0.3 〜 0.7
Outside Dimensions（H × D × W）		mm	1000×802×1500	1000×802×1500	1199×850×1500	1654×877×1620
Mass		kg	278	350	395	495
Auto drain trap	Model		AD5（Disc operated）
	Drain outlet		Rc½
Air Connection（Flange）			2½B（65A）	3B（80A）	4B（100A）

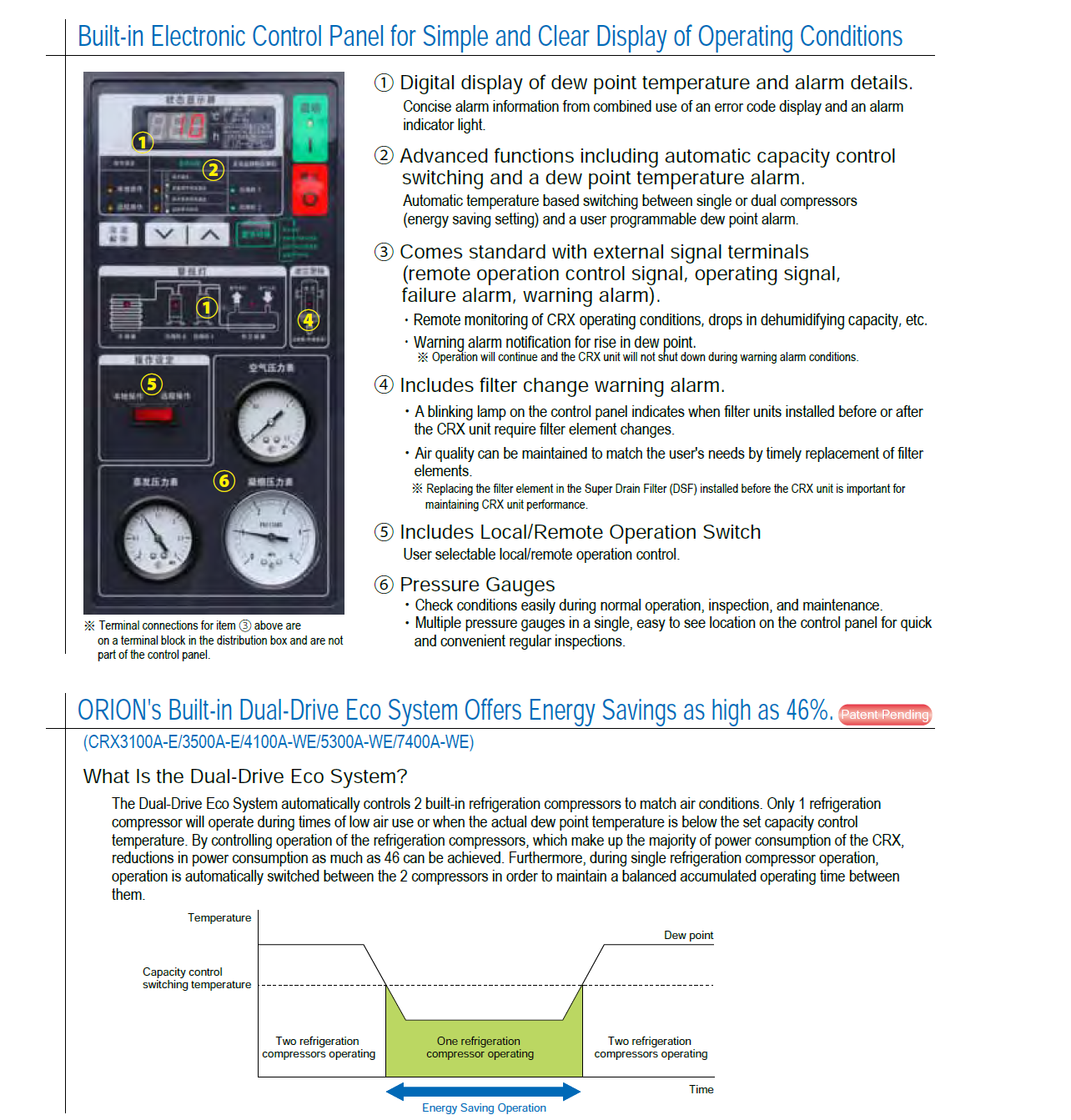

Dual-Drive	Capacity control function		—	○
	Energy saving effect during capacity control		—	46％
Refrigerant			R407C			R410A
Electrical Specifications	Power	V	3 phase 380V±10％
	Power consumption	kW	4.2	6.8	9.5	12.5
	Electric current	A	8.0	12.5	17.5	21.0

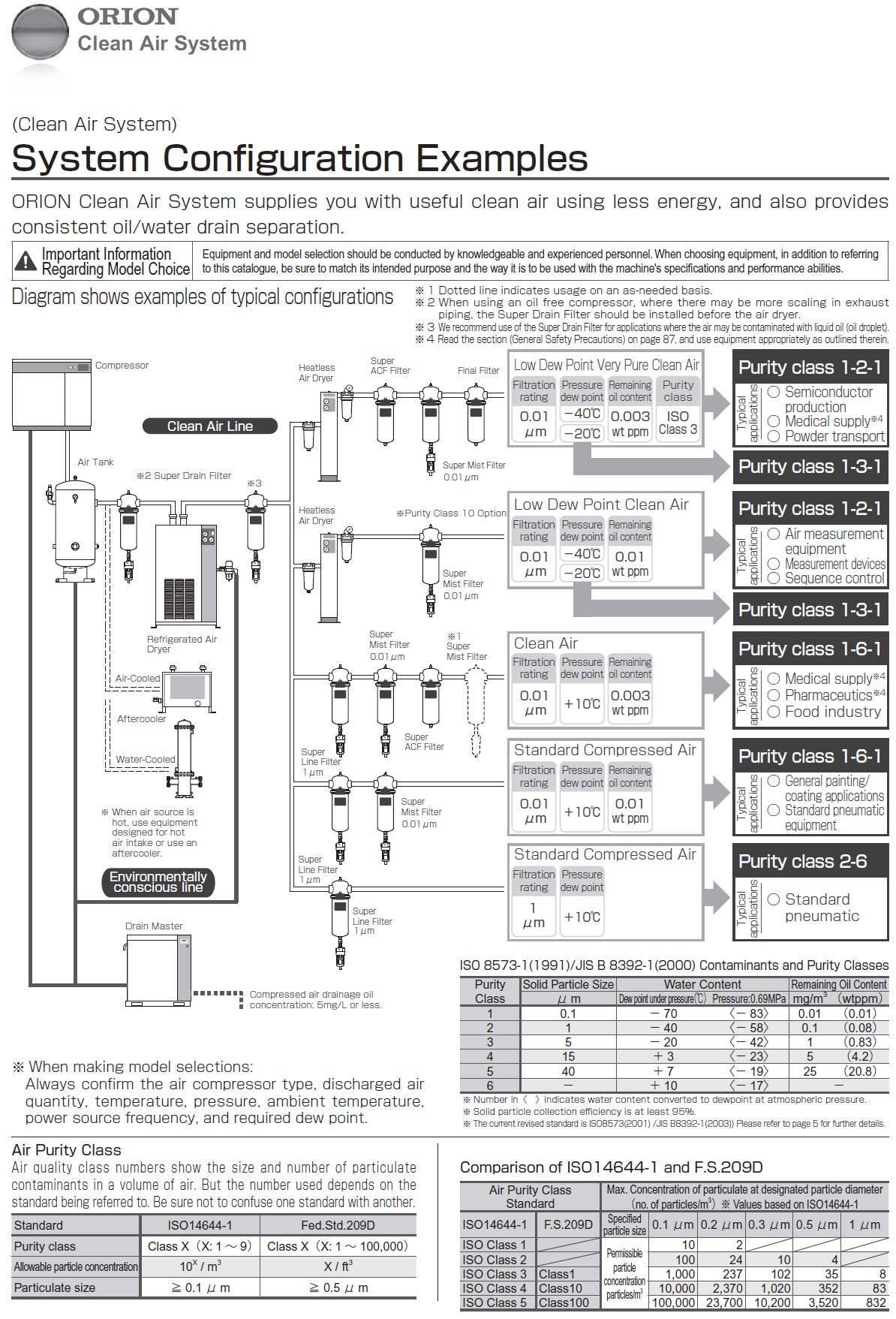

Recommended Pre Filter（Installed before CRX）			DSF2900A-SUS	DSF4100A-SUS	DSF5300A-SUS	DSF6100A-SUS, DSF8000A-SUS

Model			Air cooled
			CRX2300A	CRX3100A-E	CRX3500A-E	CRX4500A-E
Air Processing	Air Processing Capacity	㎥ /min	23	31	35	45
Conditions	Inlet air pressure	MPa	0.69
	Inlet air temperature	℃	50
	Outlet pressure dew point	℃	10
	Cooling water temperature	℃	—
	Cooling water flow rate	㎥ /h	—
	Ambient temperature	℃	35
Operating ranges	Inlet air temperature	℃	10 〜 60
	Ambient temperature	℃	2〜 45
	Compressed air pressure	MPa	0.29 〜 0.98
	Cooling water temperature	℃	—
	Cooling water pressure	MPa	—
Outside Dimensions（H × D × W）		mm	1500×802×1500			1996×850×1500
Mass		kg	323	385	380	465
Auto drain trap	Model		AD5（Disc operated）
	Drain outlet		Rc½
Air Connection（Flange）			2½B（65A）	3B（80A）	3B（80A）	4B(100A)
Dual-Drive	Capacity control function		—	○	○	○
	Energy saving effect during capacity control		—	46%
Refrigerant			R407C
Electrical	Power	V	3 phase 380V±10％
Specifications	Power consumption	kW	5.6	10	10	17
	Electric current	A	10.5	18	18	22
Recommended Pre Filter（Installed before CRX）			DSF2900A-SUS	DSF3500A-SUS		DSF5300A-SUS
